The SmallHD Focus 504 is a compact 5 inch on-camera monitor with a 1920 x 1080 touchscreen rated at 1000 nits. It has 3G-SDI and HDMI 2.0 input and output, integrated Wi-Fi and runs SmallHD PageOS for customisable pages, exposure and focus assist and LUT support.

Who it is for: Camera operators, gimbal and handheld shooters and compact mirrorless or cinema builds that need a bright, light 5 inch monitor.

Key Features

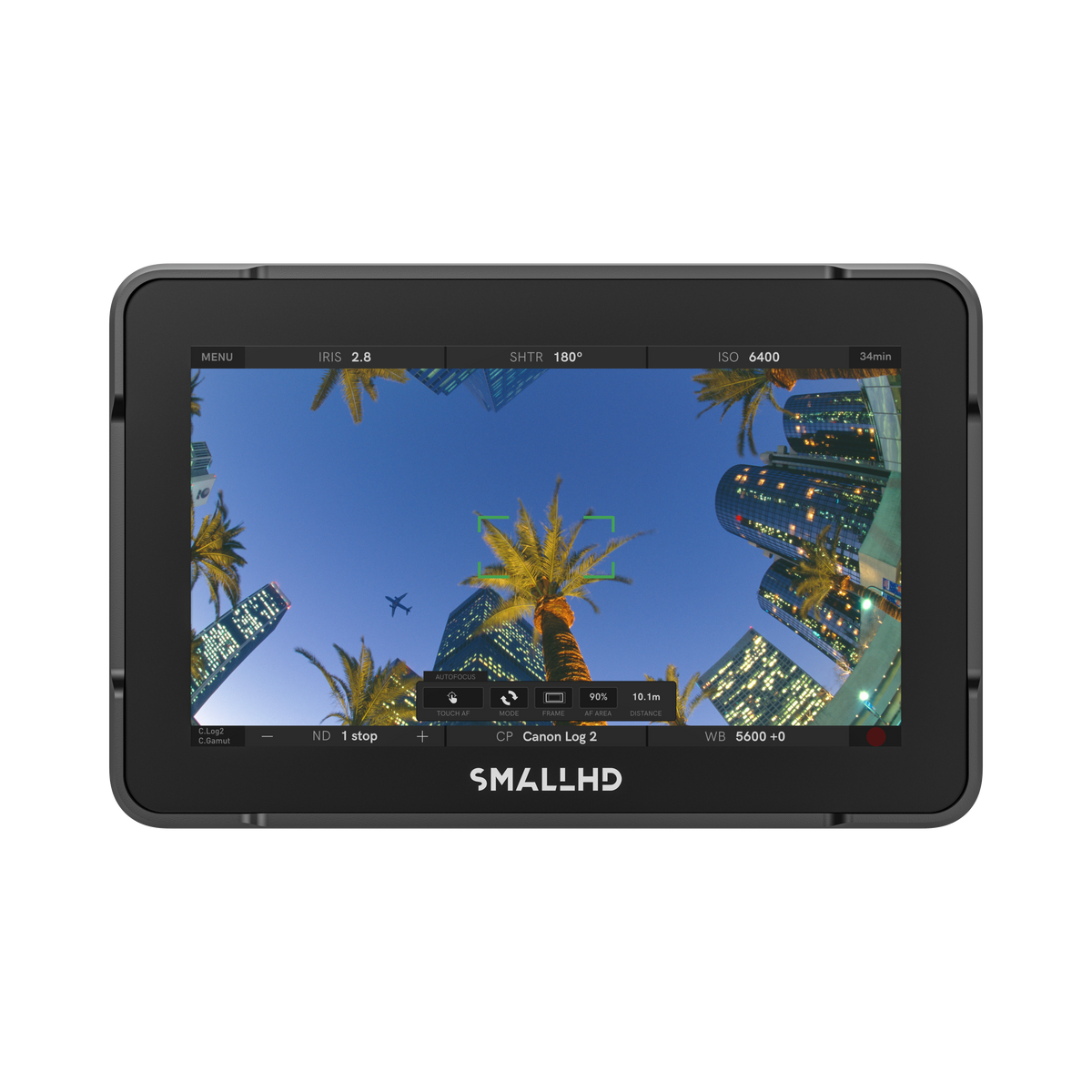

• Display: 4.97 inch IPS touchscreen, 1920 x 1080, 443 PPI, 1000 nits, 1000:1 contrast.

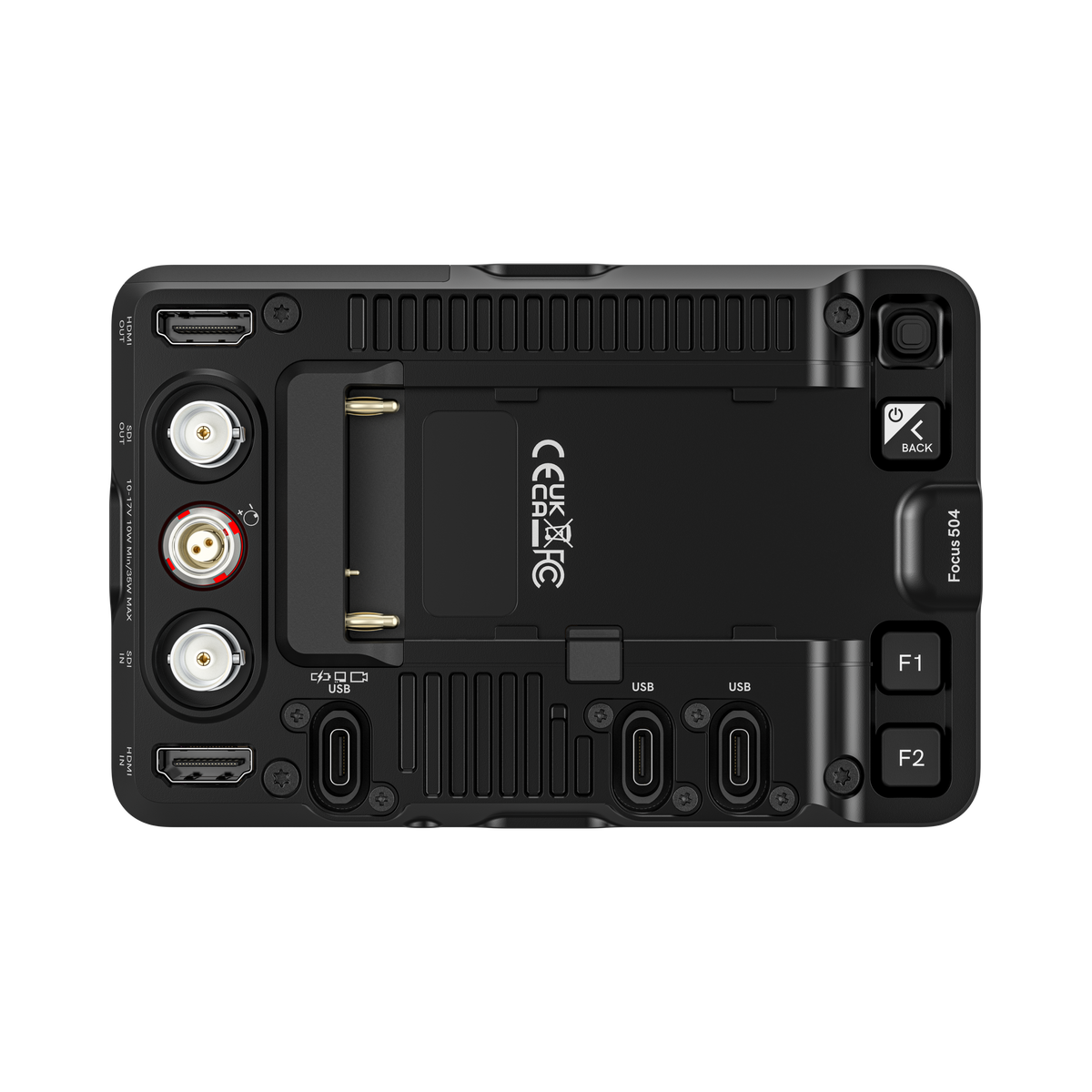

• Signal: 3G-SDI and HDMI 2.0 input and output, with 2160p30 HDMI input.
• USB-C: three locking USB-C ports; the PVC port carries power, DisplayPort Alt Mode video and data.
• Camera control: licences for RED, Sony, ARRI and Canon cameras sold separately, coming soon.

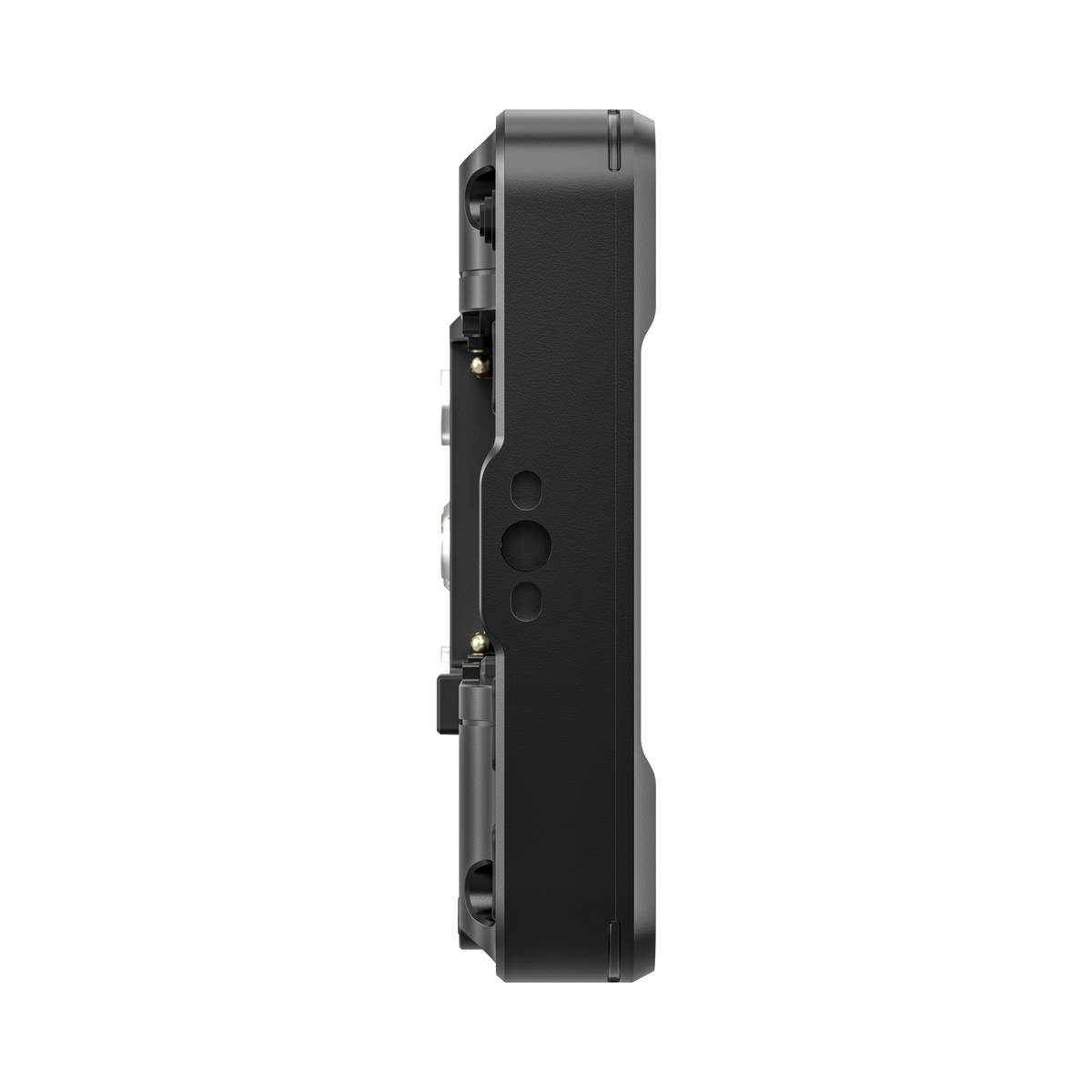

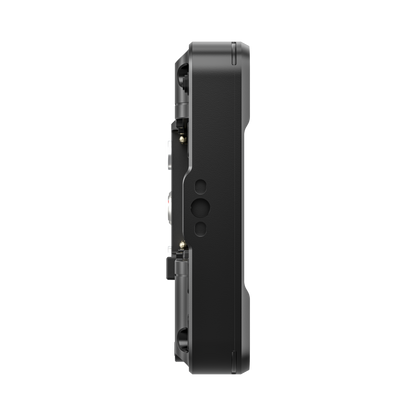

• Build: anodised aluminium unibody, raised protective bezel, four 1/4"-20 mounting points with ARRI locating pins.
• Software: PageOS with customisable pages, exposure and focus assist and LUTs.

Specifications

More SmallHD: browse the full SmallHD collection.

Frequently Asked Questions

How bright is the Focus 504?
It is rated at 1000 nits.

Which inputs does it have?
3G-SDI and HDMI 2.0 input and output.

How is it powered?
Through a 2-pin locking power input (10V to 17V) or the PVC USB-C port (5V to 20V, 25W max).

Does it support camera control?
Camera control licences for RED, Sony, ARRI and Canon are sold separately and are listed as coming soon by SmallHD.

How heavy is it?
0.31 kg (0.68 lb).

Is this genuine SmallHD?
100% genuine, warranty-backed, delivered across India.

Related guide: SmallHD Focus 504 vs Cine 5.
