The Bolt 6 RX Monitor Module is a real-time wireless video receiver that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. This Receiver Monitor Module integrates directly with the SmallHD Smart 7 Monitor Series. Receive color-accurate, 4K HDR videos in under 0.001 milliseconds.

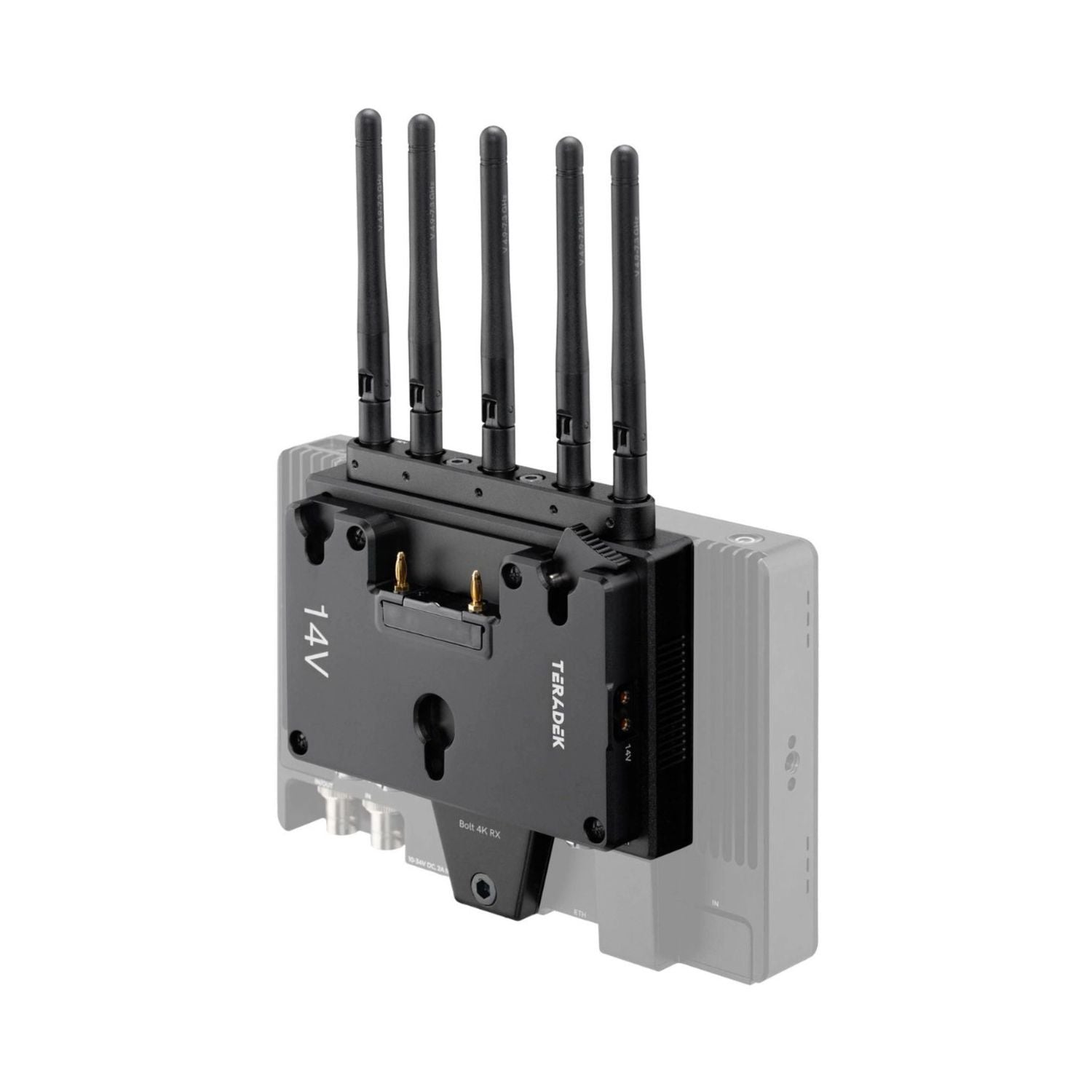

The Bolt 6 Receiver Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With direct integration, the Bolt 6 and Smart monitor are able to share power and video, allowing you to reduce the amount of cables on set.

Key features of the Bolt 6 RX Monitor Module include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

With the Bolt 6 Monitor Module, Wireless Camera-Control is also made possible, because it integrates directly into SmallHD Smart Monitors. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The Bolt 6 RX Monitor Module is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

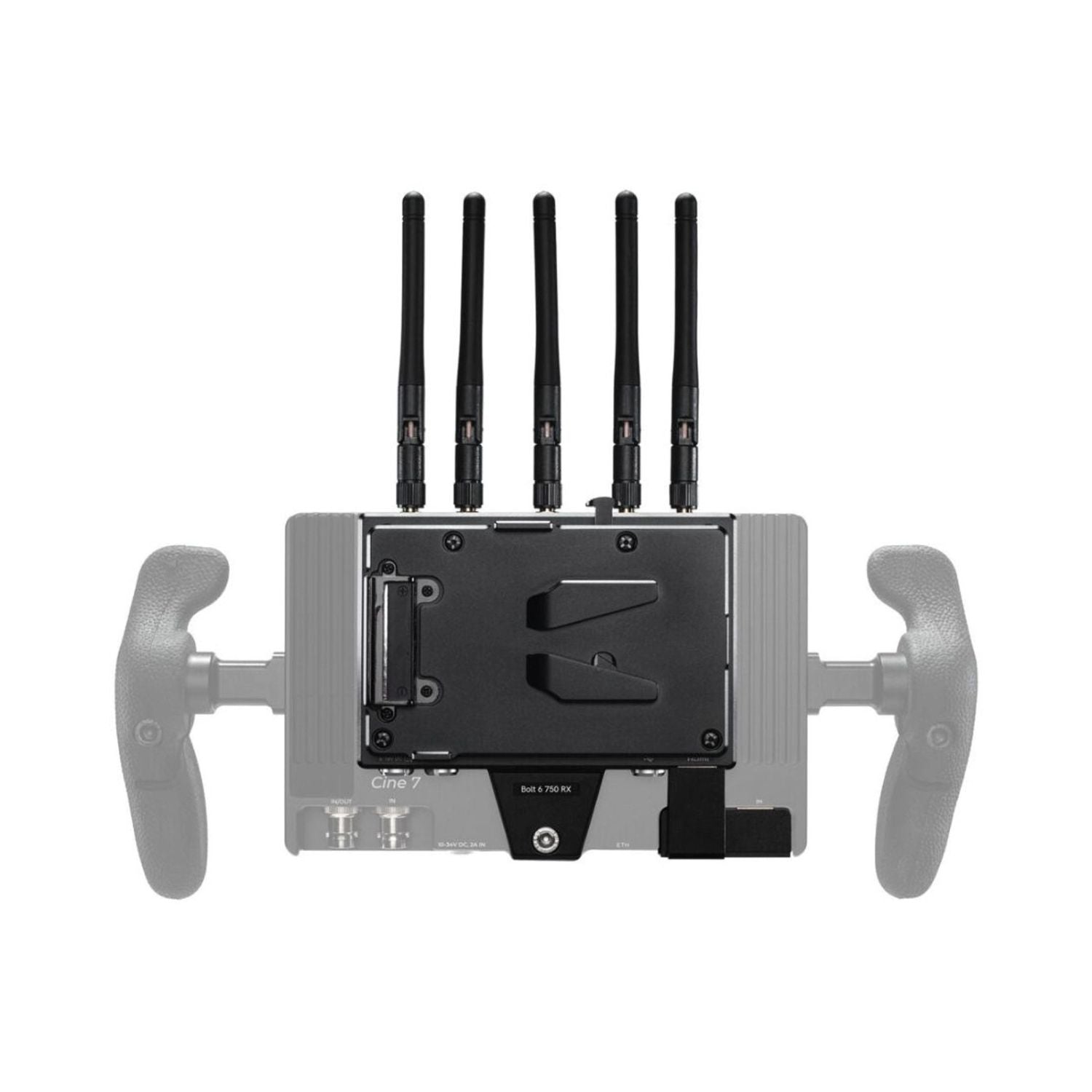

Bolt 6 Receiver Monitor Module offers two line-of-sight options: 750 ft., and 1500 ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

Specifications

• Video
  Video Outputs
  1 x HDMI 1.4b Type-A receptacle
  Sdi Ancillary Data Support
  Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
  Color Sampling
  SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
  Delay Tx To Rx
  <0.001sec
• Supported Resolutions
  Supported Resolutions
  4Kp23.98/24/25/29.97/30
  1080p23.98/24/25/29.97/30/50/59.94/60
  1080psf23.98/24/25/29.97/30
  1080i50/59.94/60
  720p50/59.94/60
  480p50 576p59.94/60
  480i(NTSC)/576i(PAL)
• Video Processing
  Video Compression
  Visually Lossless
  Color Correction
  None
• Audio Processing
  Audio Compression
  48kHz 24-bit PCM
• Outputs
  Audio Output
  Embedded HDMI Audio Output (2 Channel)
• Physical
  Dimensions
  122mm x 94mm x 27mm
  Weight
  292g (10.3oz)
  Construction
  Milled Aluminum(Chassis) and regulation-compliant PCB
  Mountability
  SmallHD 7" Monitor
• Interfaces
  Configuration Interfaces
  SmallHD Monitor UI
  Mobile App
  Bolt App
  Usb Interface Functionality
  SmallHD Monitor UI
  2x 5pin Locking Connector CCU (Host)
  Bluetooth
  Via SmallHD Monitor
• Network
  Antennas
  5 External 2 dBi antennas (included)
  Wireless
  Non-DFS Frequencies:
  5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
  DFS Frequencies:
  5.270 ~ 5.670 GHz
  Rf Channel Selection
  Auto, Manual
  Encryption
  AES-256, RSA-1024 key exchange
  Rf Power
  21 dbm EIRP
  Range
  Up to 750 ft, line of sight
  Unicast Multicast
  Can connect one Transmitter to up to 6 Receivers
  Noise Rejection
  Can coexist with WiFi and 5GHz cordless phones
  Can operate up to 6 sets in same location
  Interoperability
  Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
• Power
  Power Input
  2-Pin Circular locking Connector 6-18 VDC
  Battery
  None, optional Sony/Canon dual battery plate
  Nominal Power Consumption
  6 Watts
• Environmental
  Operating Temperature
  0-40℃

In The Box

• 1 x Bolt 6 Monitor Module 750 RX Gold Mount
• 5 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
• 1 x Screw Socket Head Black 1/4-20 x 3/8" length
• 2 x Screw Socket Head Low Profile Black Oxide M3 x 20mm
• 1 x Hex L key 2mm size 3-3/8" length
• 1 x Hex L key 3/16" x 2 13/16" length
• 1 x HDMI Adapter Bolt 4K RX Monitor Module
