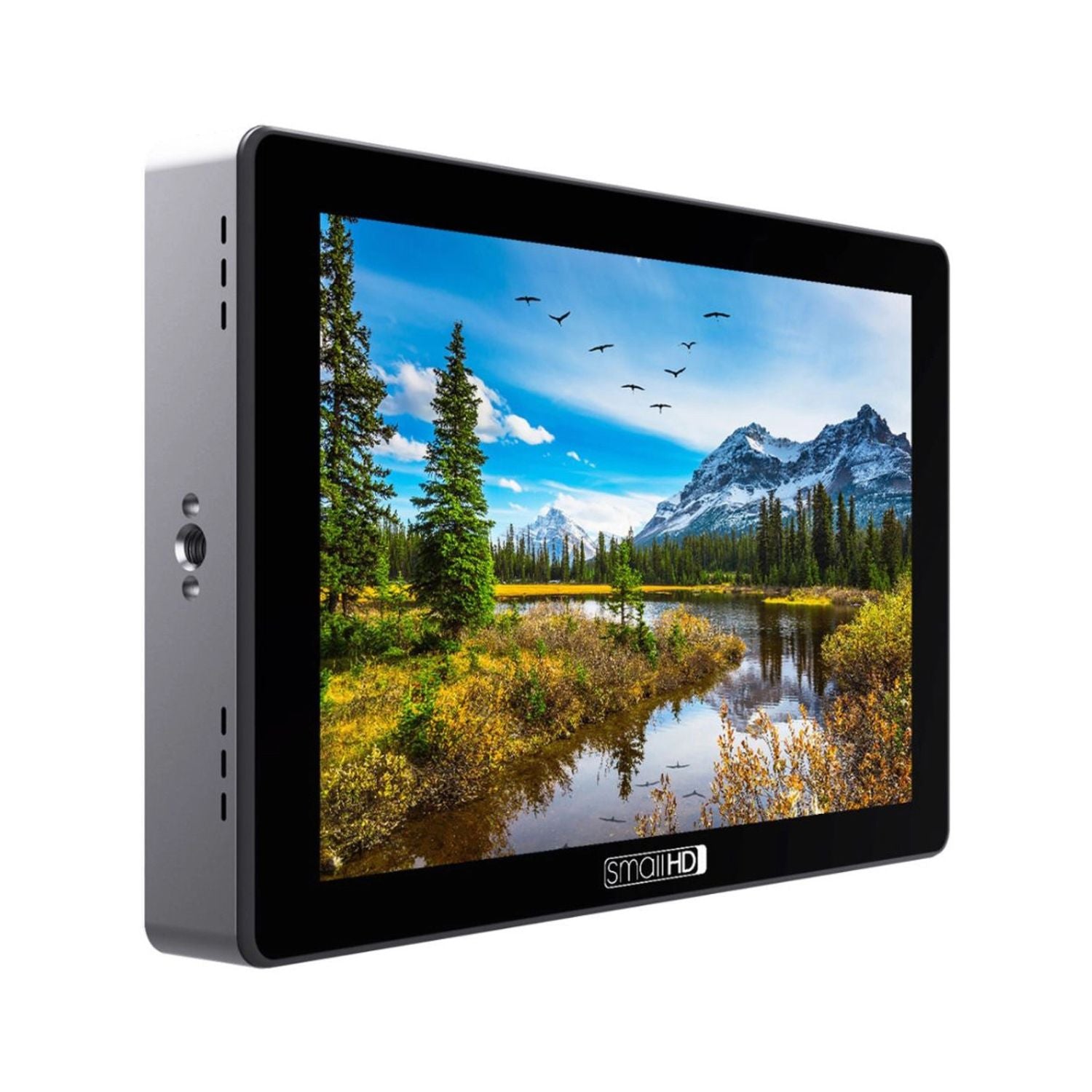

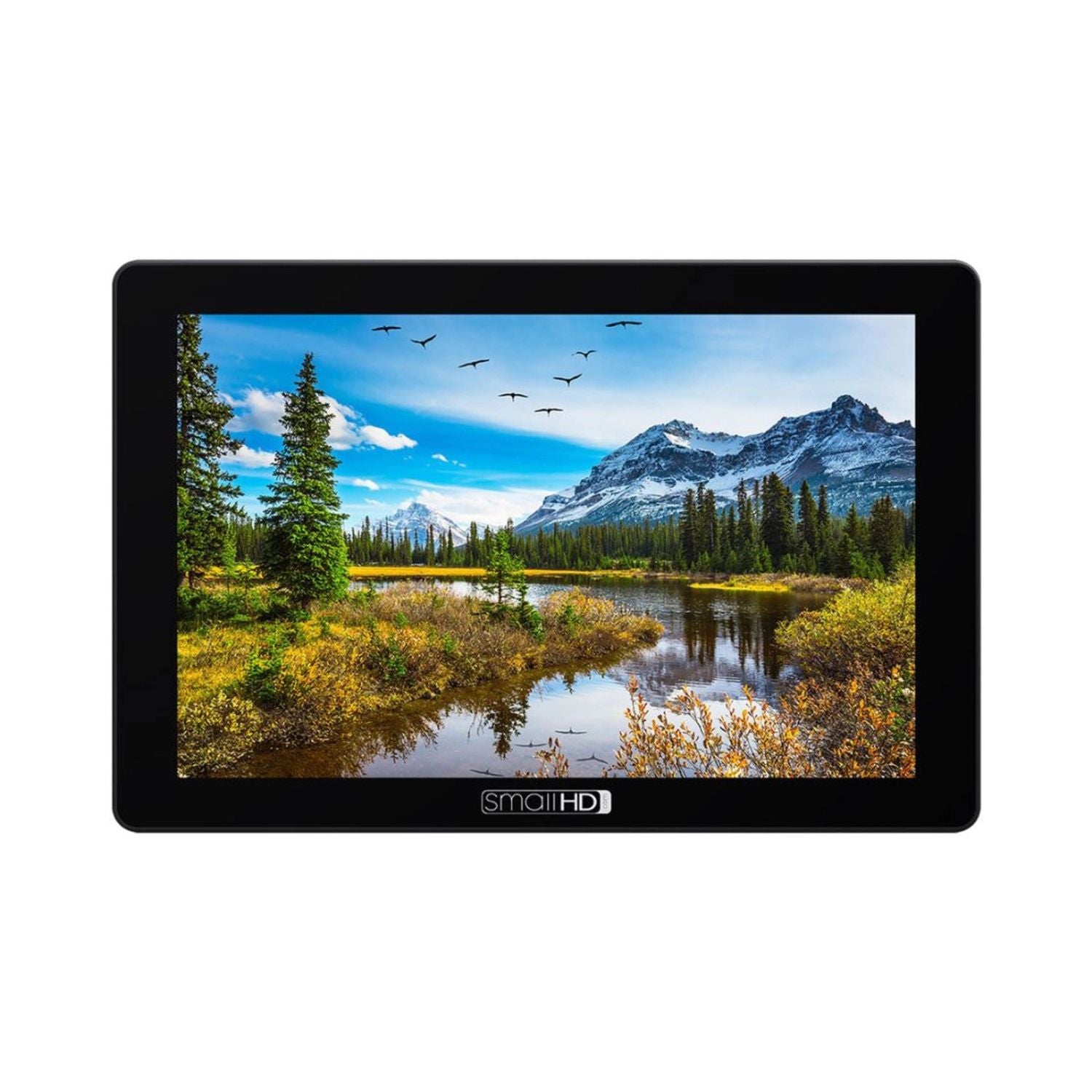

The 702 Touch is the smart, ruggedly built SDI/HDMI touchscreen monitor designed for full-time creative professionals. The 702 Touch is extremely durable without adding bulk and daylight viewable without consuming enormous amounts of power. With flexible signal options, world-class software tools, and intuitive touchscreen controls, the 702 Touch offers ultimate versatility. Built with an aluminum chassis, this monitor is rugged, designed to be packed, transported, and used in the field.

The seven-inch screen is full HD and has a resolution of 1920x1200. And thanks to 10-bit color processing in 100% DCI-P3, you’ll get a color accurate look at your production. And for the creative with an ever-changing schedule and location, the 702 Touch’s 1500 nits of brightness ensure that your monitor can be viewed no matter the time of day, offering a glare-free, color-accurate look even in direct sunlight.

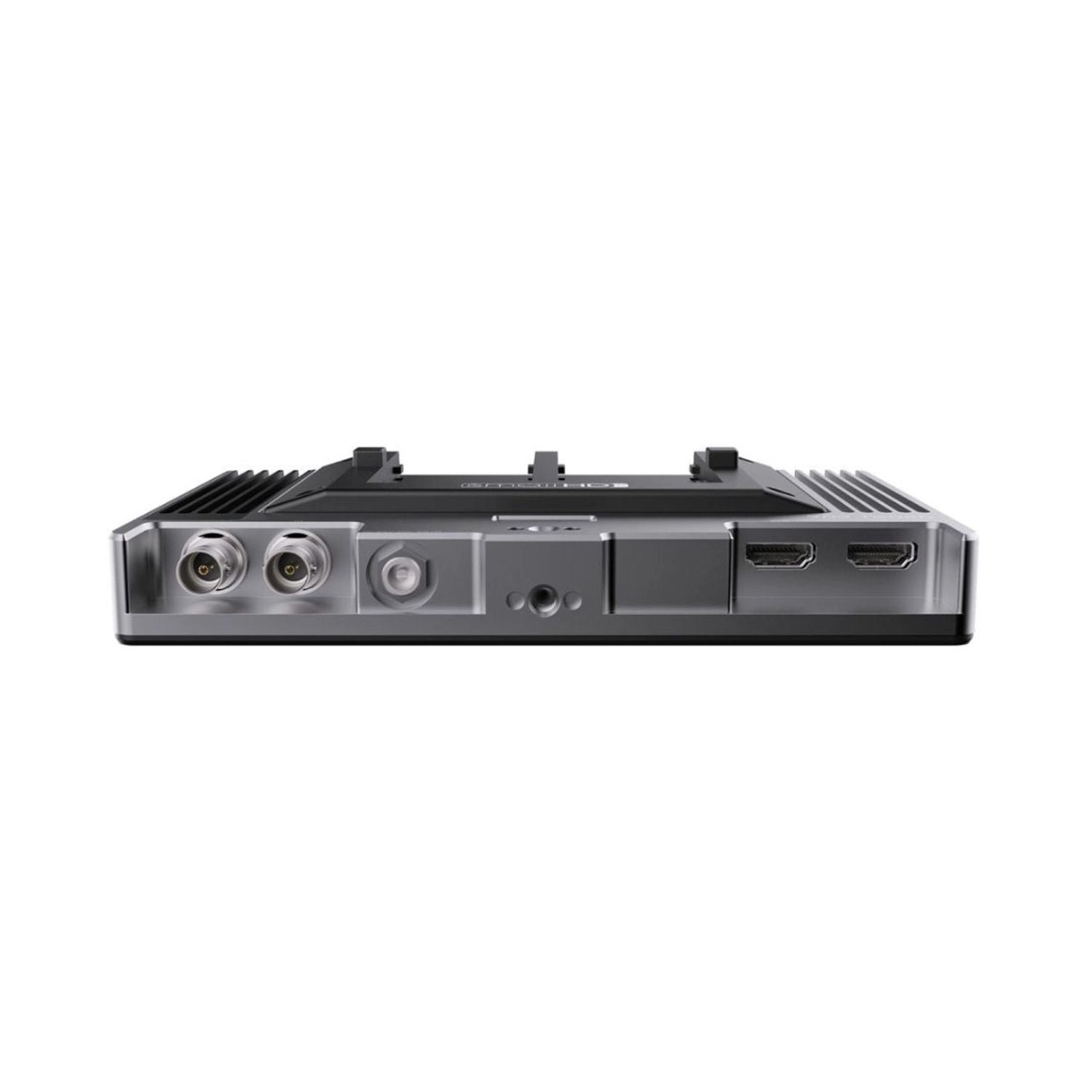

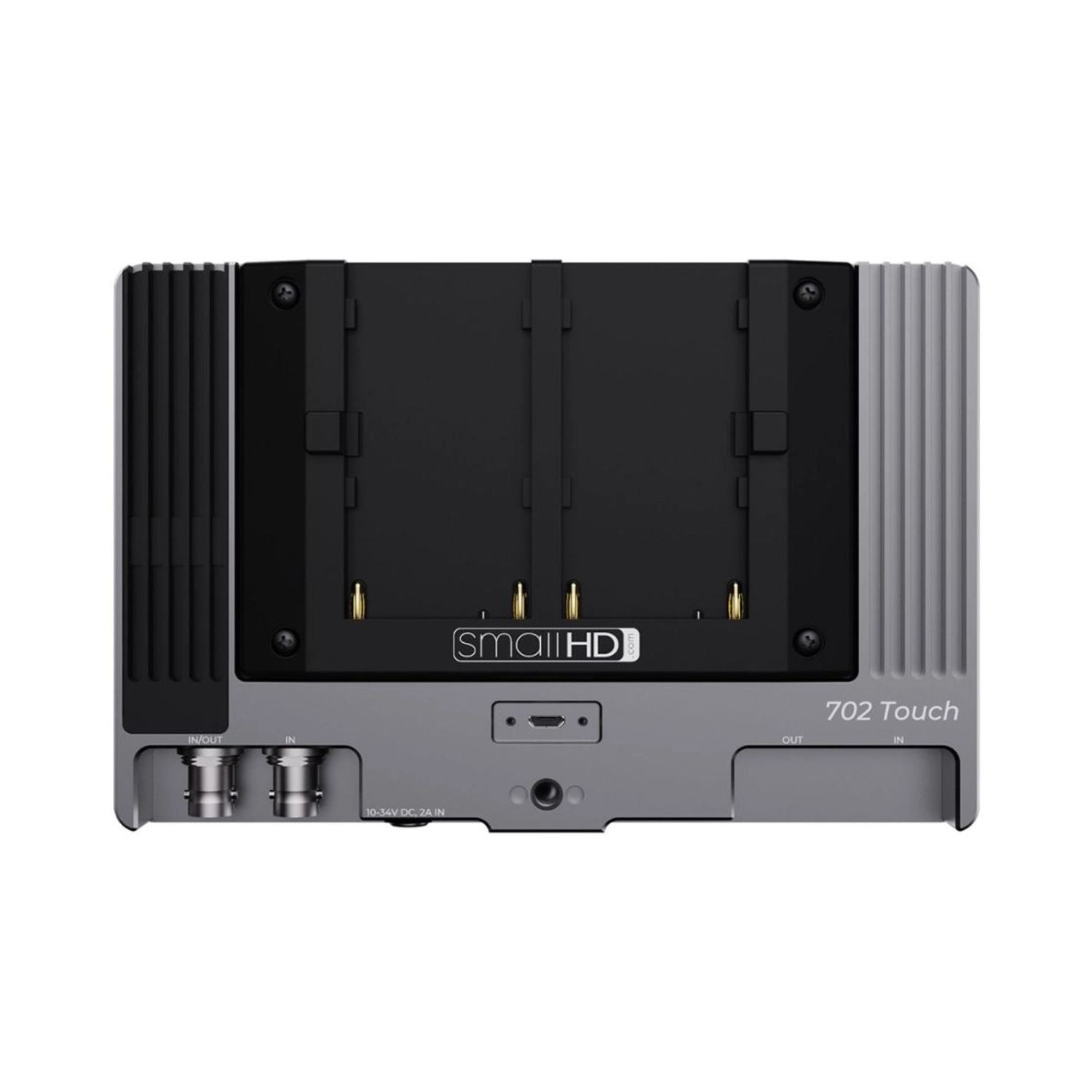

The 702 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.

Meet Our Smart PageOS Software

With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

702 Touch Compatibility

The 702 Touch is compatible with the Bolt RX Monitor Module. Improve your handheld monitoring workflow with this optional hardware addition to your 702 Touch monitor. Receive cable-free 4K and HDR wireless video from any Bolt 4K series transmitter at a distance of up to 750ft (228m).

Upgrade to Camera Control for RED® DSMC2® & KOMODO™*

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED® DSMC2® & KOMODO™ camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Specifications

• Environmental
  Item Weight (oz)
  18.9
  Package Weight (oz)
  26
  Height (in)
  4.67
  Width (in)
  1.32
  Length/Depth (in)
  7.09
  Compliance
  FCC, IC, CE, RoHS
  Operating Temperature
  30F to 100F
  Storage Temperature
  0F to 120F
  Mount Points
  Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
  Construction
  Anodized aluminum chassis
• Display
  Panel Type
  IPS LCD
  Diagonal Size
  7.02
  Resolution
  1920x1200
  Pixel Density
  322
  Aspect Ratio
  16:9
  Active Area
  5.95 x 3.72
  Max Brightness
  1500 Nits
  Contrast
  1000:1
  Gamut
  100% DCI-P3 Coverage
  Color Depth
  10-bit Processing (8-bit panel)
  Viewing Angle
  160
  Backlight Type
  LED
  Adjustable Backlight
  Yes
• Input Signal
  3G-SDI Input Types
  YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50,
  HD-SDI Input Types
  YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
  SD-SDI Input Types
  YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
  HDMI Input Types
  YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
• Output Signal
  3G-SDI Output Types
  YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
  HD-SDI Output Types
  YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
  SD-SDI Output Types
  YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
  HDMI Output Types
  YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
  Audio Output Types
  HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
• Connector Type
  SDI
  1x BNC 3G input and 1x BNC 3G selectable input/output
  HDMI
  1 input and 1 output: HDMI Type-A Receptacles (full size)
  Audio
  1x 3.5mm 3-pin Stereo Headphone Jack
  Power In
  Barrel Connector [2.0mm ID, 5.5mm OD (center pin positive)]
  USB
  1x USB 2.0 Micro-B receptacle
• Controls
  Primary
  Touch Screen
  Record Capture
  Image Capture Tool
• Power
  Connector
  Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
  Voltage
  DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
  Consumption
  17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
  Battery Plate Included
  L-Series standard (V Mount or Gold Mount optional accessories)
  Power Supply
  Recommend DC 12~15V at ~2.5 amp or greater
  Battery Types
  L-Series, V Mount, Gold Mount
  Overload Protection
  DC input: Reverse polarity
  Battery Chemistry
  Li-ion
  Battery Charging Time
  Monitor does not support the charging of batteries
• Software
  Pixel Zoom
  1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
  Frame Guides
  Preset Aspect Ratios & Customizable
  DSLR Scale
  Canon 5DMkii & Canon 7D
  Custom Scale
  Yes (Underscan Only)
  Anamorphic De-Squeeze
  0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
  Image Rotate
  Automatic or Manual Control
  Image Flip
  Automatic or Manual Control
  Cross Conversion
  Yes: HDMI → SDI & SDI → HDMI
  Focus Assist
  User Adjustable Color Style and Intensity
  Peaking
  User Adjustable Intensity
  False Color
  Rainbow, Arri Style, Custom with up to 10 nodes
  Zebra
  Dual - User Configurable
  Waveform
  Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
  Vectorscope
  Yes
  RGB Parade
  Fully User Customizable
  Histogram
  Luma & RGB Style
  Image Capture
  Yes
  Custom LUTS
  Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
  LUT Downstream
  Available on SDI or HDMI Out. Applied on Output Preview Page.
  LUT Import
  via SD Card or USB Storage Device
  Overlay
  With Opacity Slider and Blink Setting
  Audio Meters
  HDMI & SDI up to 8 channel
