SmallHD Indie 7 Touchscreen On-Camera Monitor
Low stock: 1 left
Product Description

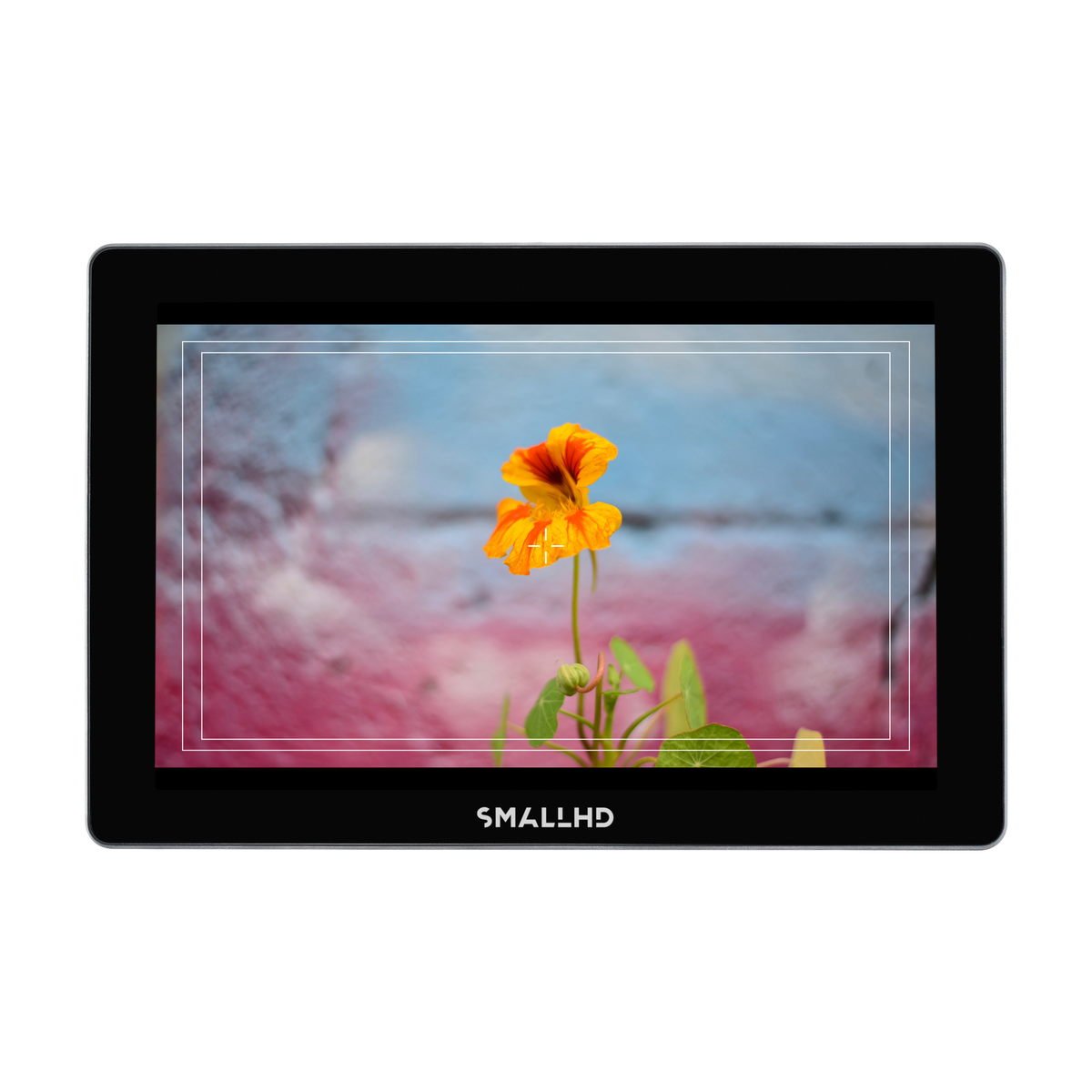

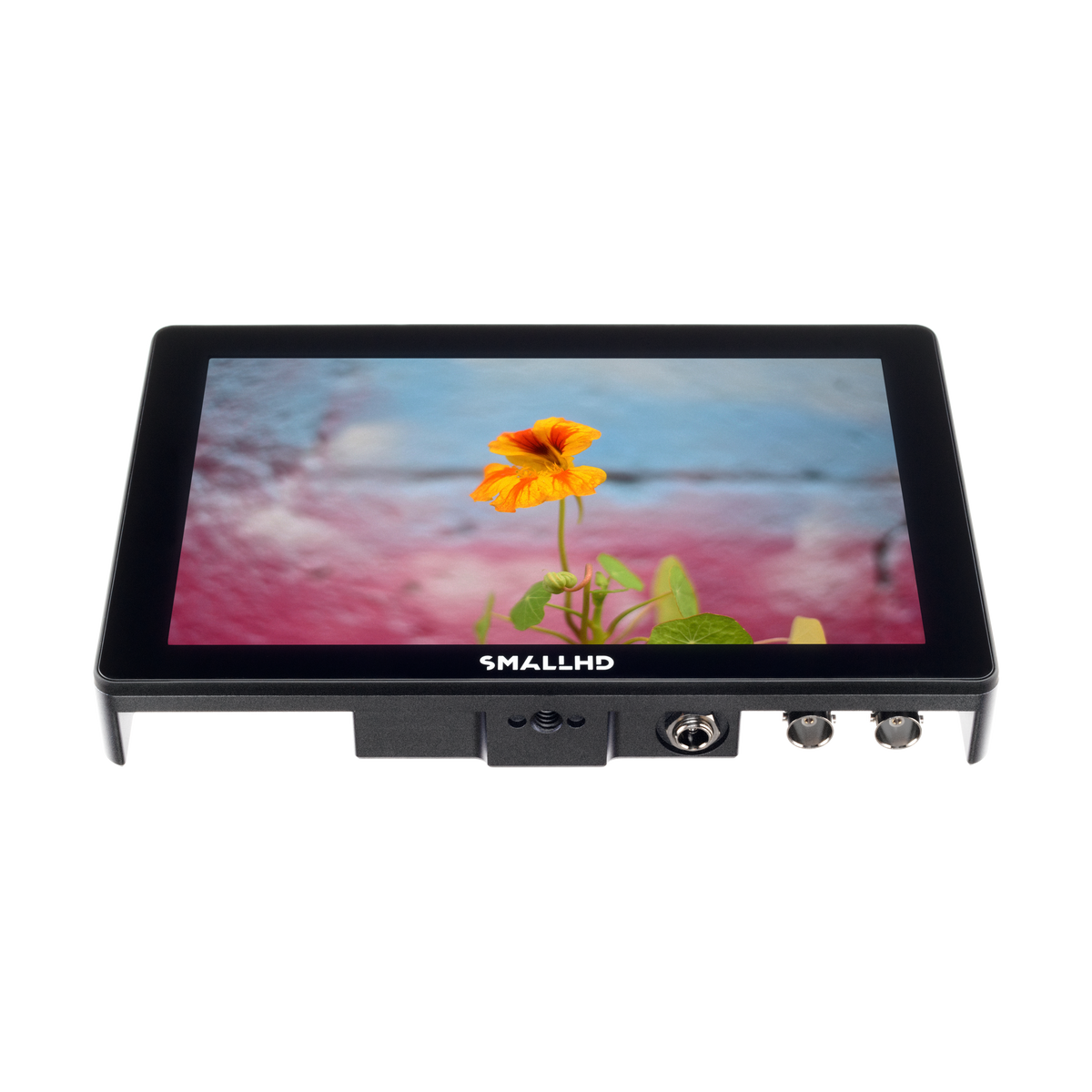

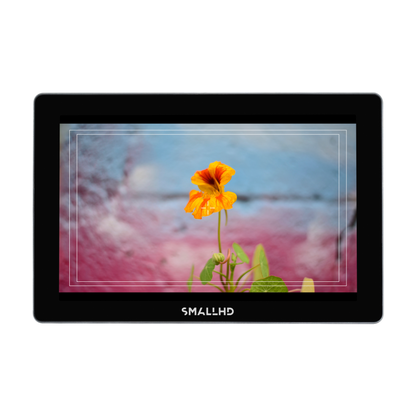

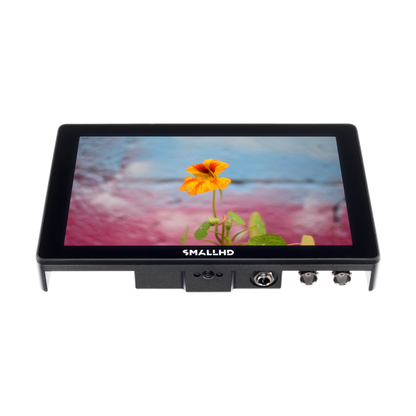

The SmallHD Indie 7 is the entry model in SmallHD's 7 inch touchscreen monitor series. It has a 1920 x 1200 IPS touchscreen at 323 PPI and 1000 nits, in a thin, rugged aluminium chassis built for heavy production use.
It has two 3G-SDI connections, HDMI in and out, and runs PageOS with custom Page profiles, frame guides, focus and exposure assist, 3D LUT overlays and scopes. A Sony L-Series battery bracket is included.
Key Features
- Display: 7.02 inch IPS touchscreen, 1920 x 1200, 323 PPI, 1000 nits, 1000:1 contrast.
- Colour: 95% Rec.709 with 10-bit processing (8-bit panel).
- Signal: One 3G-SDI input, one selectable 3G-SDI input or loop out, and HDMI input and output.

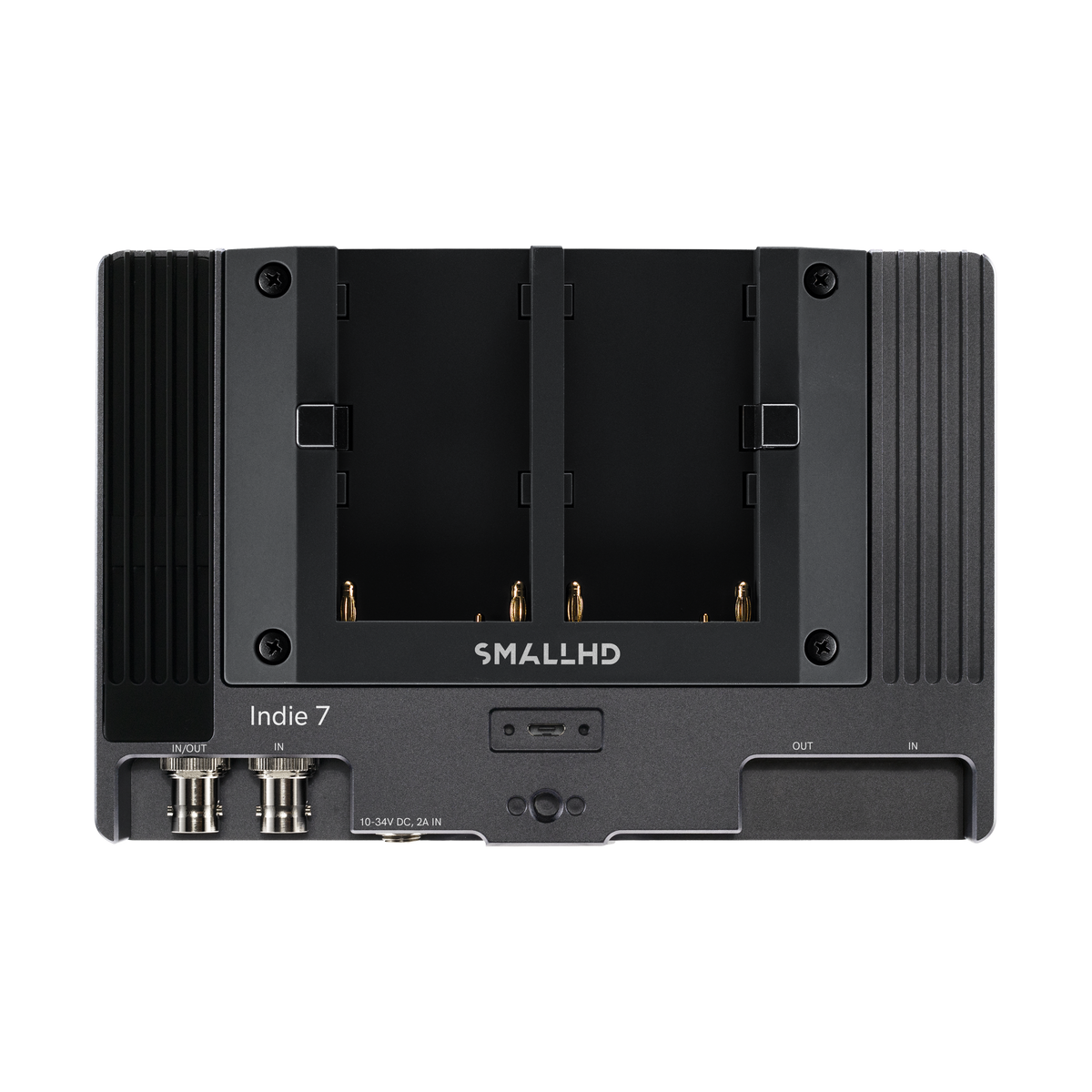

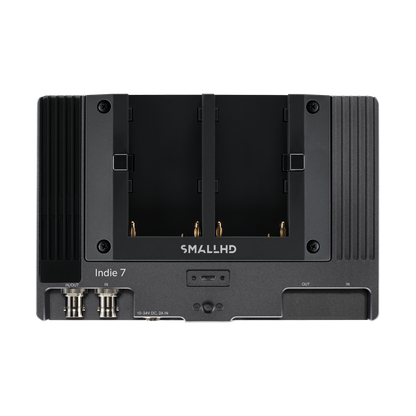

- Power: L-Series battery bracket included; 2.0mm barrel input (10V to 34V); Gold Mount or V-Mount plates available separately.
- Wireless option: Compatible with the Bolt RX Monitor Module for cable-free video from a Bolt 4K series transmitter.
- Camera control: Optional RED KOMODO and DSMC2 camera control (licence and cable sold separately).
Specifications
| Brand | SmallHD |
| Model | Indie 7 |
| Screen size | 7.02 inch IPS LCD with touch |
| Resolution | 1920 x 1200, 323 PPI |
| Brightness | 1000 nits |
| Contrast | 1000:1 |
| Colour | 95% Rec.709, 10-bit processing (8-bit panel) |
| Refresh | Syncs with input from 48Hz to 60Hz |

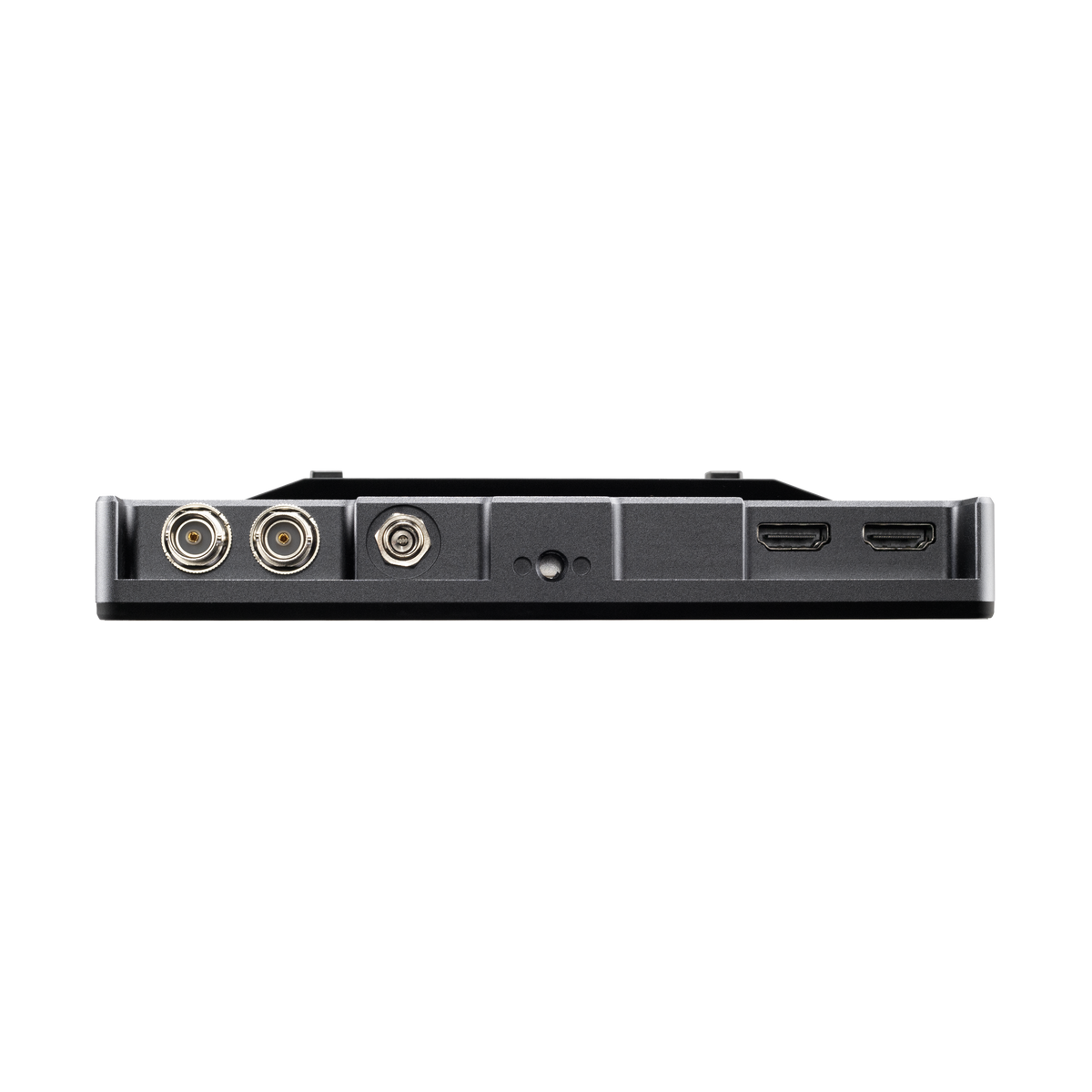

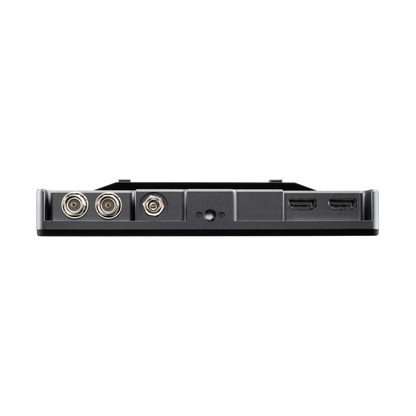

| SDI | 1x BNC 3G input and 1x BNC 3G selectable input or output |
| HDMI | 1 input and 1 output, full-size Type-A |
| Audio | Headphone jack, metering up to 8 channels |
| Other ports | 1x SD card slot, 1x USB 2.0 Micro-B |
| Power input | Barrel 2.0mm ID, 5.5mm OD, 10V to 34V DC; L-Series, V-Mount or Gold Mount battery plates |
| Power draw | 17.3W (2160p30, 100% brightness, tools enabled) |

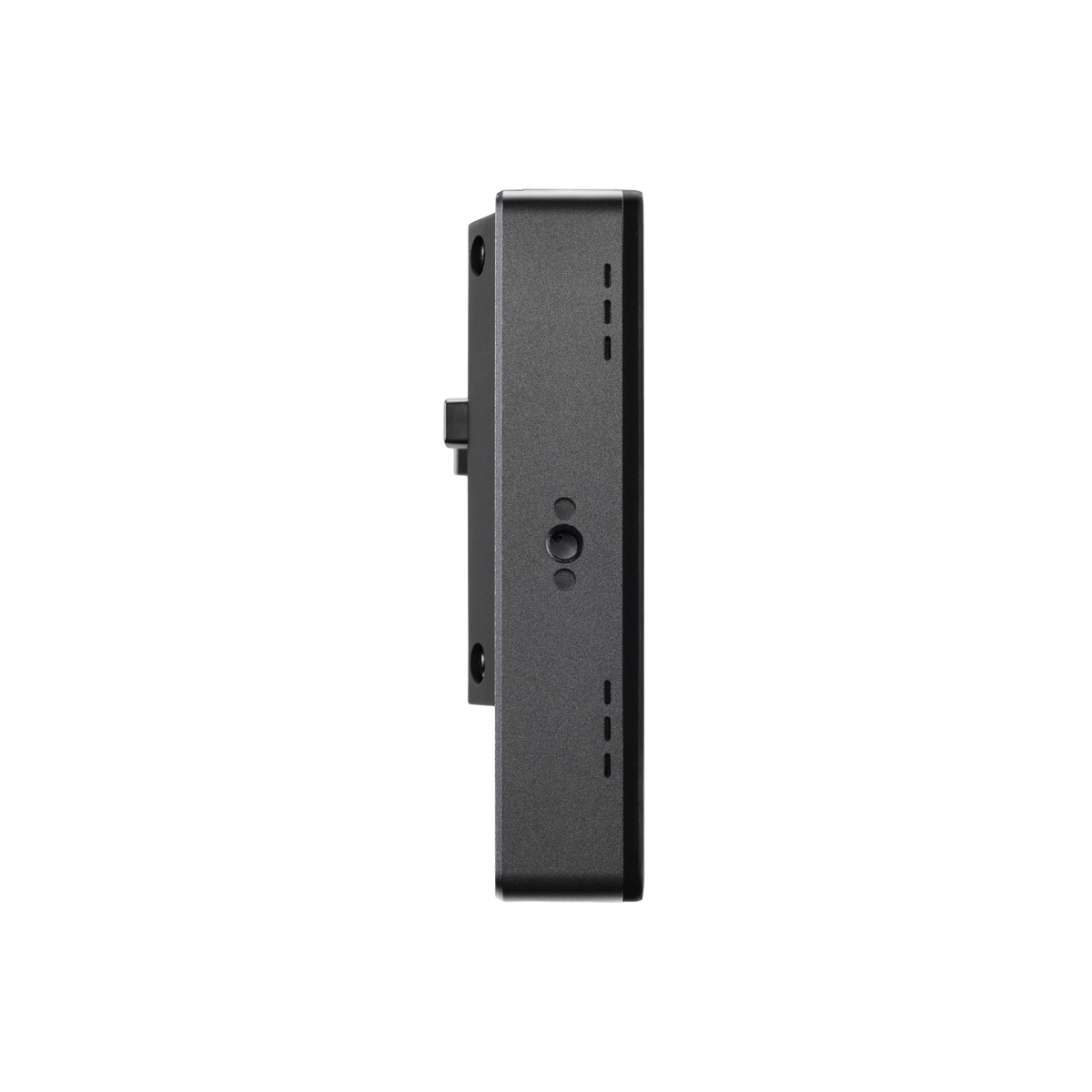

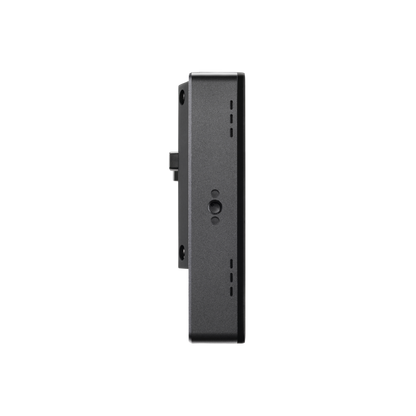

| Mount points | 4x 1/4"-20 (left, right, bottom, back) |
| Operating temperature | 32 to 105 F |
| In the box | Indie 7 monitor, Sony L-Series battery bracket, cleaning cloth |
Frequently Asked Questions
How bright is the Indie 7?
It is rated at 1000 nits, which SmallHD states can be viewed in direct sunlight.
Which inputs does it have?
One 3G-SDI input, a second 3G-SDI connection that works as an input or loop out, and HDMI input and output.
How do I power it?
With the included Sony L-Series battery bracket, the 2.0mm barrel input (10V to 34V), or a Gold Mount or V-Mount plate sold separately.
Can I add wireless video?
Yes. It is compatible with the optional Bolt RX Monitor Module, which receives video from a Bolt 4K series transmitter.
Does it have camera control?
It supports optional camera control for RED KOMODO and DSMC2. The licence is sold separately.
Is this genuine SmallHD?
100% genuine, warranty-backed, delivered across India.
