Product details

The Bolt 4K RX Monitor Module is a real time wireless video receiver that supports video signals up to 4Kp30 over at a line-of-sight distance of up to 750ft (228m) with no image latency that integrates directly with the SmallHD Smart 7 Monitor Series. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. This device is cross-compatible with the entire Bolt 4K Family. Featuring a V-Mount Battery Plate for power.

Integrated Hardware Addition to SmallHD Smart 7 Touchscreen Monitors

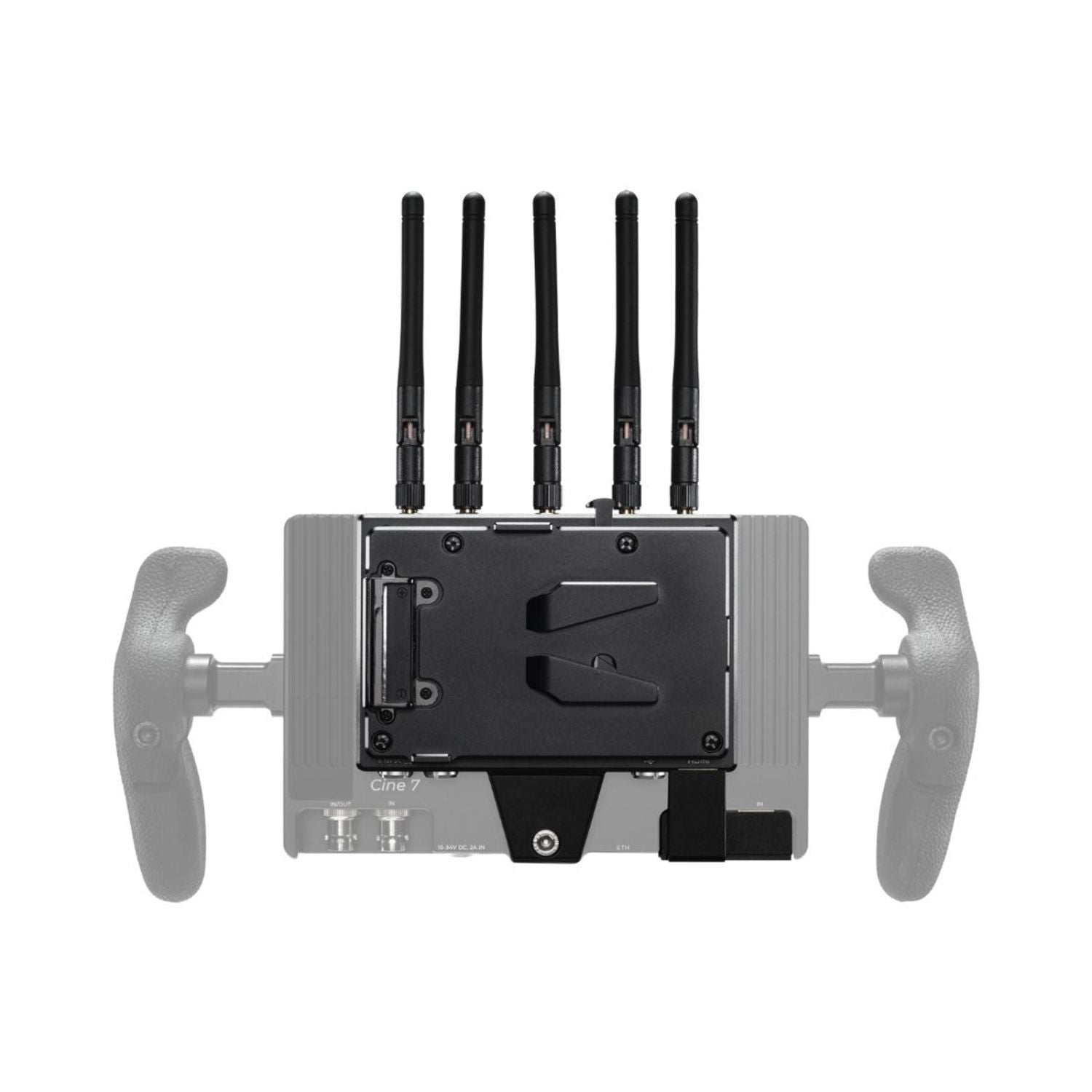

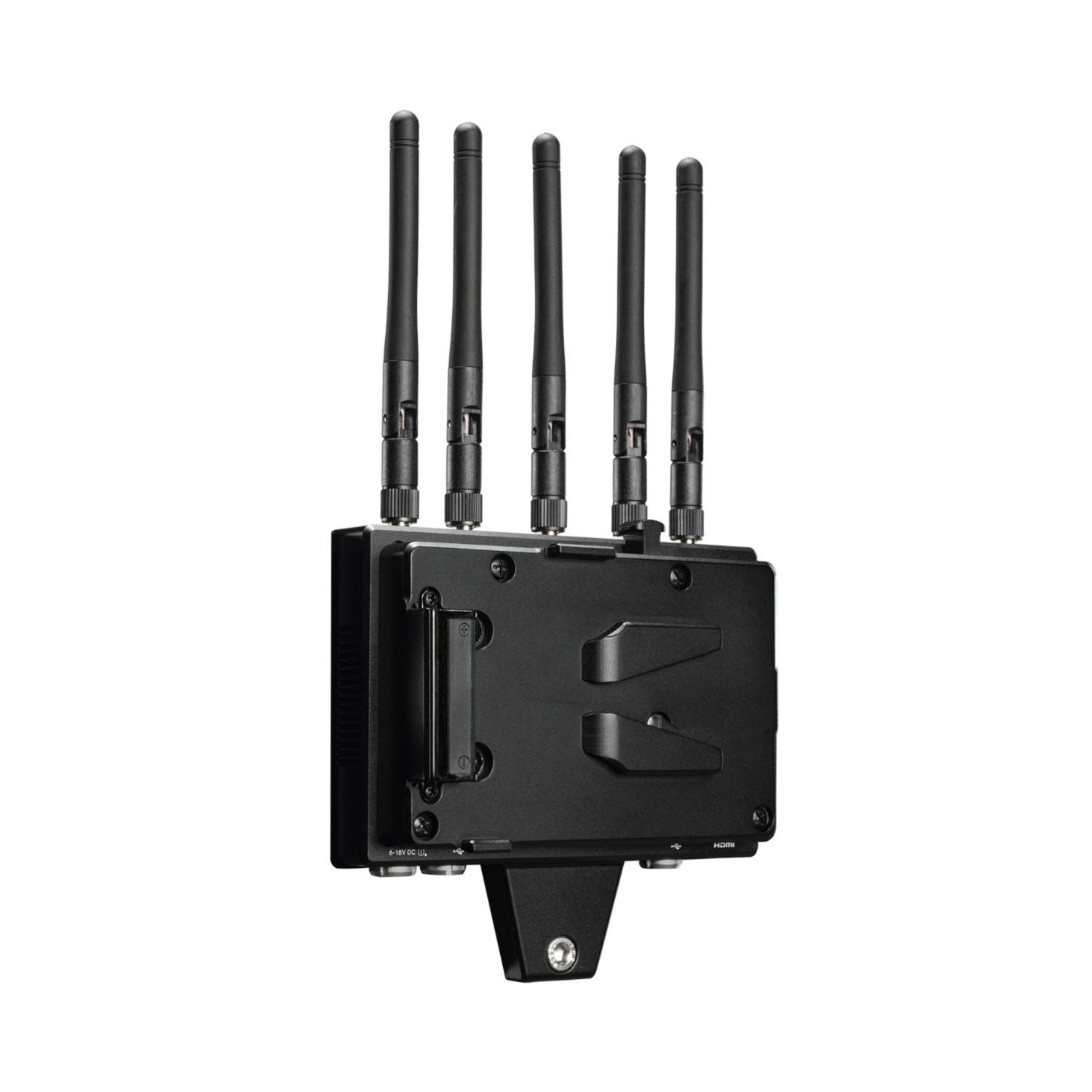

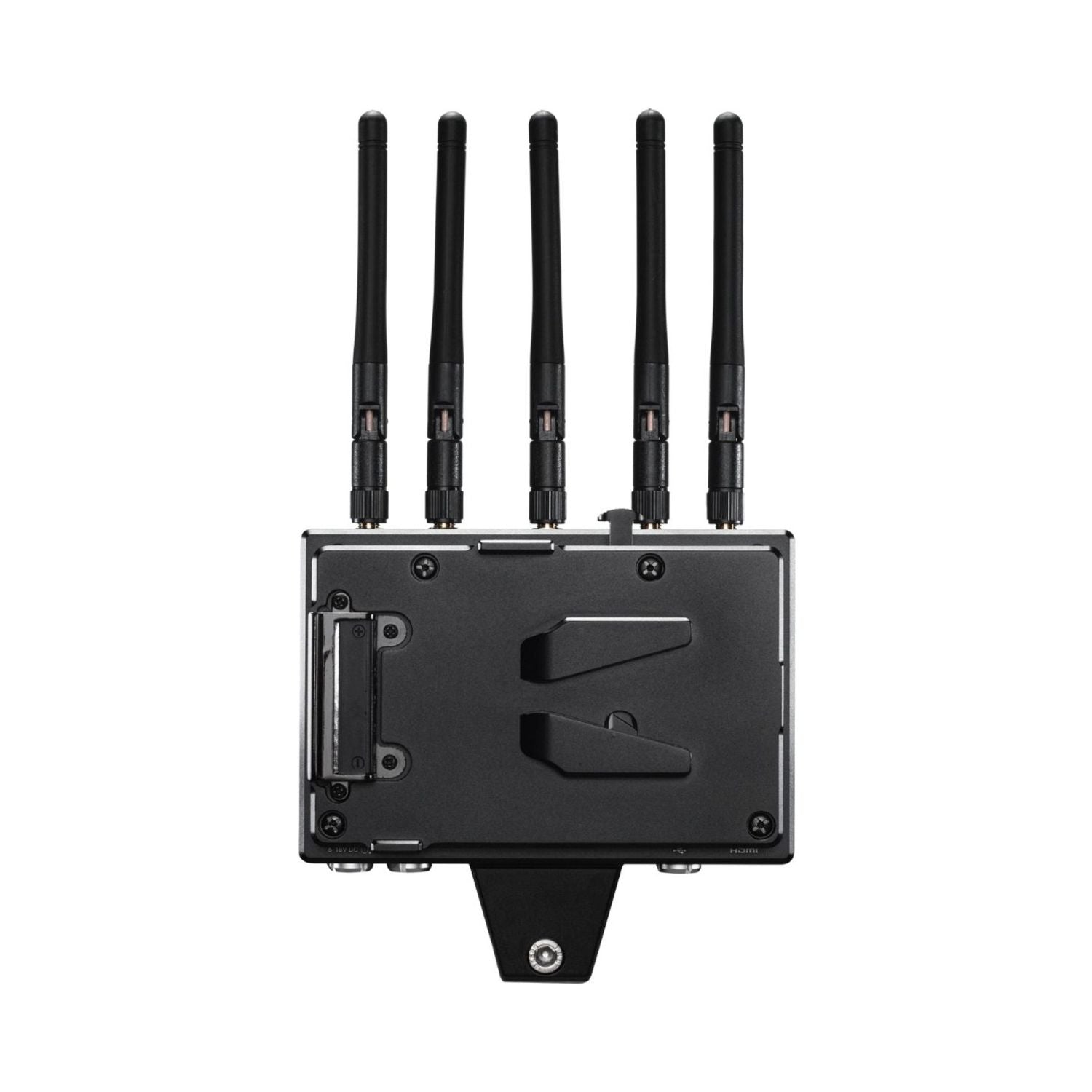

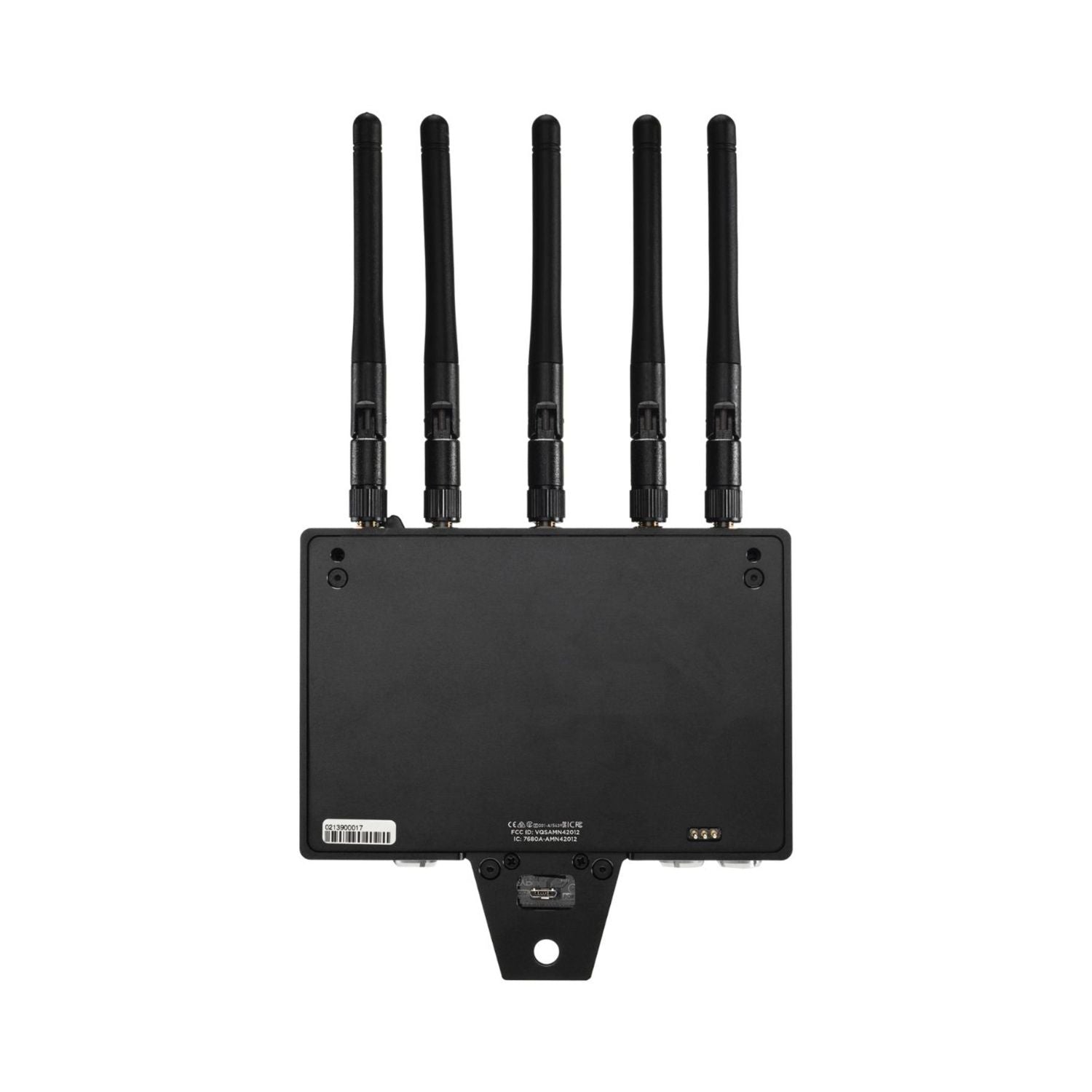

RX Module easily attaches to the back of Cine 7, 702 Touch, and Indie 7 Smart Monitors. Includes a V-Mount Battery Plate capable of battery power pass-through to both RX Module and monitor.

Zero-Delay 4K Wireless Video
Receive images up to 4Kp30 at a line-of-sight distance of up to 750ft (228m) with no image latency (>0.001sec).

Output: 1x HDMI 2.0 (up to 4Kp30)

True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance
Reliable signal reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Universal Cross-Compatibility between all Bolt 4K Devices
Receive signal from any Bolt 4K series TX device for expanding workflow requirements.

Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.

Specifications

• Video
  Video Outputs
  1 x HDMI 1.4b Type-A receptacle
  Sdi Ancillary Data Support
  Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
  Color Sampling
  SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
  Delay Tx To Rx
  <0.001sec
• Supported Resolutions
  Supported Resolutions
  4Kp23.98/24/25/29.97/30 (HDMI only)
  1080p23.98/24/25/29.97/30/50/59.94/60
  1080psf23.98/24/25/29.97/30
  1080i50/59.94/60
  720p50/59.94/60
  480p50 576p59.94/60
  480i(NTSC)/576i(PAL)
• Video Processing
  Video Compression
  Visually Lossless
  Video Format Conversion Support
  No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 4K XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs)
  Color Correction
  None
• Audio Processing
  Audio Format
  48kHz 24-bit PCM
• Outputs
  Audio Output
  Embedded SDI/HDMI Audio Output (2 Channel)
• Tally
  Interface
  USB-mini, Battery Plate Pins, HDMI
  Connector

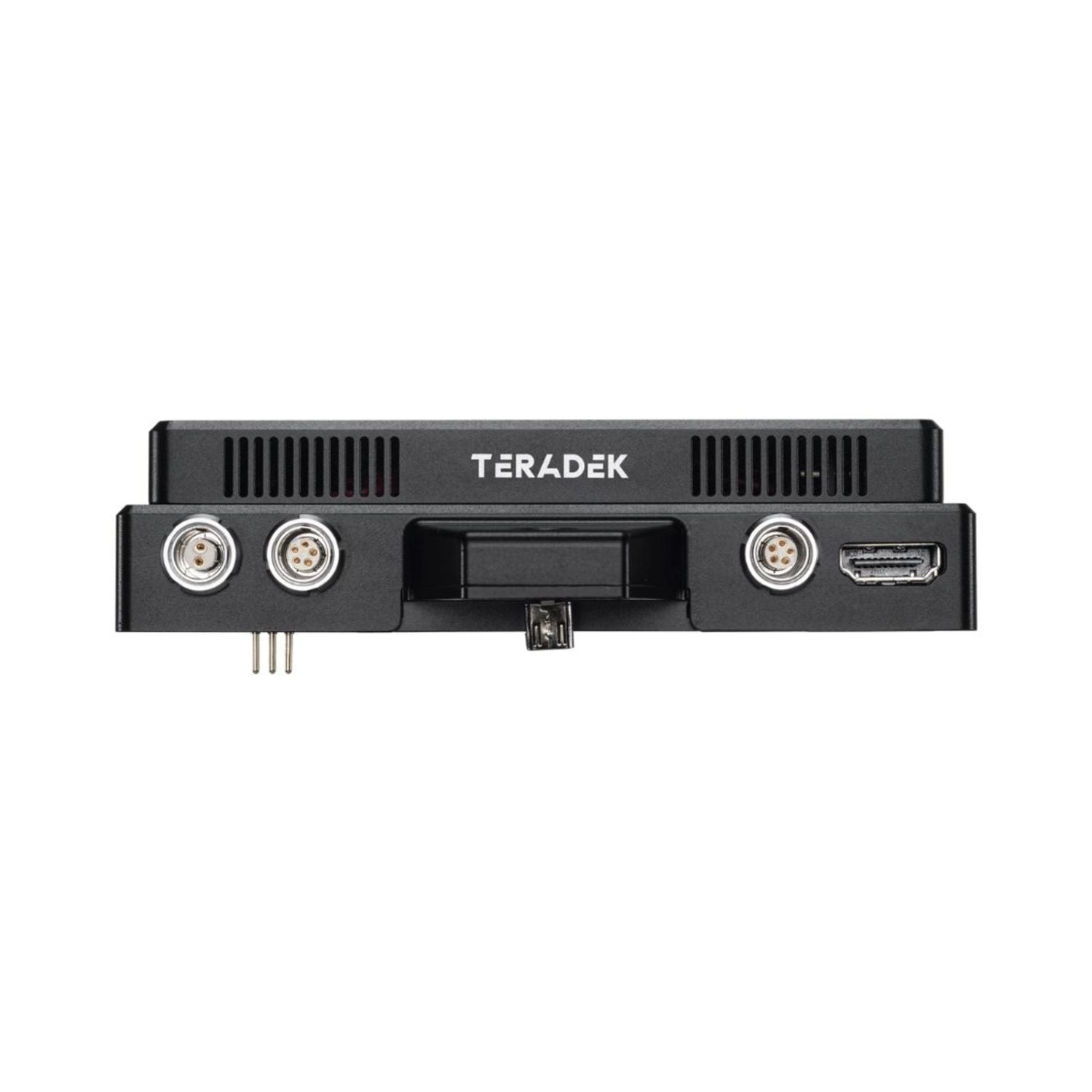

  3x 2-Pin Circular locking Connector 6-28 VDC
  1x Full Size HDMI
• Physical
  Dimensions
  122mm x 94mm x 27mm
  Weight
  292g (10.3oz)
  Construction
  Milled Aluminum(Chassis) and regulation-compliant PCB
• Interfaces
  Configuration Interfaces
  OSD with Menu, Joystick Navigation
  Switches
  On/Off Switch
  Mobile App
  Bolt App
  Desktop App
  Bolt Manager application for OSX & Windows
  Usb Interface Functionality
  Upgrade via Micro-USB
  External Control
  Via Bolt App
  Bluetooth
  2.4 GHz
• Network
  Antennas
  5 External 2 dBi antennas (included)
  Wireless
  Non-DFS Frequencies:
  5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz
  DFS Frequencies:
  5.270 ~ 5.670 GHz
  Number Of20 Mhz Channels
  25 (region dependent)
  Number Of40 Mhz Channels
  13 (region dependent)
  Channel Bandwidth
  20MHz, 40MHz
  Rf Channel Selection
  Auto, Manual
  Encryption
  AES-256, RSA-1024 key exchange
  Rf Power
  17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
  Rf Sensitivity
  5 External 2 dBi antennas (included)
  Range
  Up to 750 ft, line of sight
  Unicast Multicast
  Each Receiver can register up to 6 Transmitters
  Noise Rejection
  Can coexist with WiFi and 5GHz cordless phones
  Can operate up to 6 sets in same location
• Power
  Power Input
  2-Pin Circular locking Connector 6-28 VDC
  Battery
  V-Mount
  Nominal Power Consumption
  11 Watts
• Environmental
  Operating Temperature
  0-40℃
